Features of the new Grinds control:

- 2 inlets 2 outlets thus faster

- Screen can be rotated vertically and horizontally via the menu
- Twice as fast and more precise than its predecessor
- Speed Control locks the control after 10 seconds to ensure it complies with StVZO regulations.
- Warning buzzer adjustable in the controller for max & min pressure
- Upgrade height sensors
- Grinds logo on the valve block illuminated in LED white, perfect for your show expansion
- Pressure unit selectable BAR PSI

- Language selection: German, English, Spanish and French

- Bluetooth module integrated in the valve block for mobile phone use IOS Android (note: not for every smartphone)

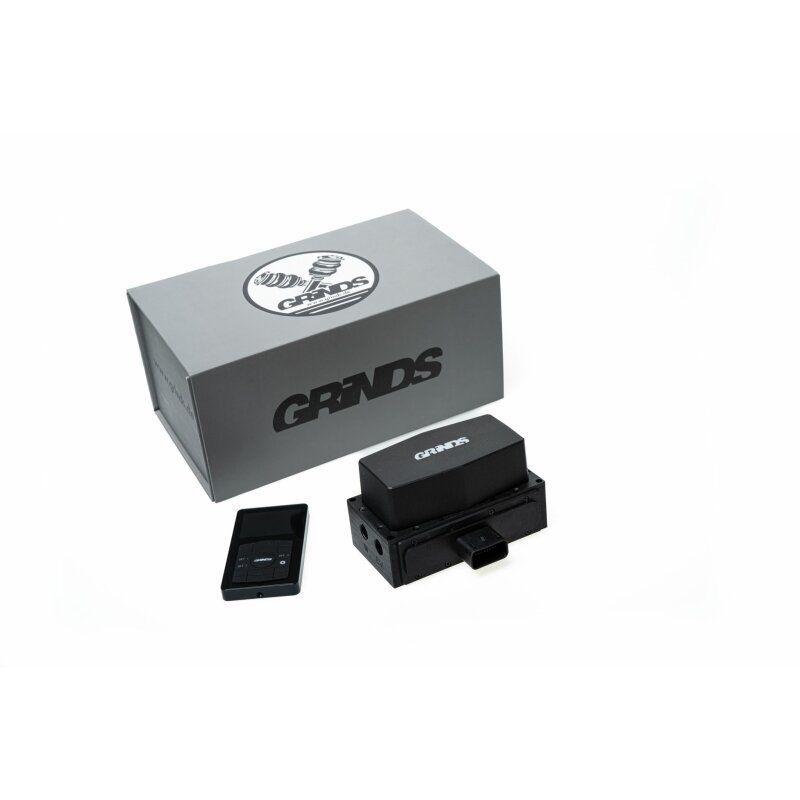

Kit contents:
- Valve block with 8x1/4 internal thread (1x outlet 4x to the damper system 1x inlet)
- Controller with 6m clinker cable
- Optionally in 6 or 8mm system
- 2x silencers
- 18m polyamide cable
- Fuse holder / electronic accessories up to 6m ignition plus and 10qmm2 permanent plus cable
- 1m ground cable in 10qmm2
- Manual aluminum water separator black. Optional electronic water separator possible.
- Pressure sensor integrated in the valve block
- Installation instructions and operating manual in German/English
- Safety valve
- Hose cutter
- 200 amp relay + 70 amp glass fuse

Pneumatic list:
1x blind plug 1/4 Material: nickel-plated brass
1x safety valve 1/4 Material: brass
4x 90° fitting 1/4) Material: nickel-plated brass
4x straight connectors: nickel-plated brass

This prices is for the management only. If you want to add tank and compressor please get in touch.
